computation, summary statistics, and graphing in excel

The purpose of this practical is to introduce you to Microsoft Excel and complement the theoretical material presented in the lectures, discussions, and reading material. The experience gained in analyzing and presenting data should also help you to develop your confidence in using and presenting numerical results.

By the end of this practical, you should:

• be able to import and format data in a spreadsheet

• perform calculations with both manually-entered and built-in functions

• create and format different types of graphs

• interpret both graphs and numeric values

getting started

If you have not already, you should download the Week 5 Data file from Blackboard and save it to your OneDrive folder for EGM101.

Hint

I strongly recommend that you create a dedicated folder for your EGM101 material on your OneDrive, so that you can be sure that you have access to it on any of the computers on campus, or at home.

I also recommend that you organize your folders in a way that will help you find things easily, rather than just dumping everything into a folder and hoping for the best.

The folder structure outlined below is only a recommendation (you should use something that works best for you), but an organized folder structure with clearly-labeled, understandable file names (for example, EGM101_Week5_Data.xlsx instead of Data (1).xlsx) should help make life just a bit easier.

OneDrive
└─ EGM101
    ├─ Practicals
        ├─ Week 5
        ├─ Week 6
        ├─ Week 7
        └─ Week 8
    ├─ Reading
    └─ Assignment
        ├─ Data
        └─ Report

Once you have downloaded the file, open Excel using either the Start Menu (Start > Excel) or the Desktop or Taskbar icons (if they exist).

spreadsheet basics

When it opens, you should see the following (note that the layout and theme may differ):

A spreadsheet is a table of different cells, organized into rows and columns. In Excel, the columns are labelled alphabetically (A, B, C, … Z, AA, AB, etc.), and the rows are labeled numerically (1, 2, 3, … etc.).

Cells are identified using their column and row - in the example above, the green outline is in cell A1, or the first column and first row.

At the bottom left of the window, you can also see a tab labeled “Sheet1”, indicating that this is the first sheet (table) in the spreadsheet. Excel spreadsheets can contain multiple sheets - to add additional sheets, use the “+” symbol next to the sheet tabs. You can also switch between sheets using the tabs.

importing data

For this week’s practical, we will be working with meteorological observations from the Armagh Observatory, provided by the Met Office.

Note

The data on Blackboard are for 1853–2022. If you download the file directly from the Met Office, it will be up to date through the current year - this means that your results for some parts of the exercises are going to look different than what is shown here.

Recall that a variable is any sort of characteristic of the members of a population - in essence, it’s the thing that we’re measuring and analyzing. In this practical, we’re primarily going to be working with three different temperature variables:

• Tmax, the monthly maximum temperature (in °C) recorded at the Armagh Observatory;

• Tmean, the monthly mean temperature (in °C) recorded at the Armagh Observatory; and

• Tmin, the monthly minimum temperature (in °C) recorded at the Armagh Observatory.

The meteorological data provided by the Met Office date back to 1853, though the temperature records provided “only” go back to 1865. Before we get started, though, we need to Import the data into Excel.

To do this, you can press Ctrl and O at the same time (Ctrl + O), or by selecting Open from the File tab in the upper-left corner of the window.

Browse to where you have saved armaghdata.txt, and select the file. You may need to change from viewing Excel files to All files in order to see it in the panel.

When you open the file, you should see the following window:

These data are Fixed Width, meaning that columns are separated by a fixed number of spaces. You can also see that the file has a number of extra rows at the beginning - we don’t actually want to import these, so change Start import at row: to row 6. Once you’ve done this, click Next to bring up Step 2 of 3:

Here, we want to make sure that the column breaks (the vertical lines) are spaced where we have different columns. But, we can also use this to separate out non-numeric characters from each cell, which will mean we don’t have to go through the spreadsheet and do this by hand later on.

If you scroll to the bottom of the window, you should see something like this:

You can add separators around these characters by clicking on them. When you click, you should see a new separator appear. If you have placed it in the wrong spot, click on it and drag it to where you want it to be:

Make sure that you add separators after each numeric entry.

Hint

Some of the entries have additional symbols after them to indicate missing data. You can add additional breaks to put these into their own column for easy removal.

The final view should look something like this:

Click Next to bring up the following window:

Here, we can tell Excel which columns to import, and which columns to skip. First, select the column by clicking on the header (first cell) for each column.

We want to make sure that Excel doesn’t import any of the columns which won’t have data - for each of these columns, you’ll want to select Do not import column (skip). When you select this, the column header should change from “General” to “Skip Column” - do this for each of the small columns that you created, plus the final column. It should look something like the following:

Now click Finish. You should see something like the following:

Note

If you see other columns, it likely means that you had additional column breaks in step 2 of the Import dialogue above, or you did not tell Excel to skip importing some columns in step 3 above.

Don’t panic. You can delete a column following the same procedure as outlined for rows below - just be sure to highlight the column that you want to remove, rather than the row.

Now that we’ve imported the data, we need to save the spreadsheet as an Excel Workbook. To do this, click on the File tab, and select Save As.

Re-name the file as EGM101_Week5_Practical, make sure to change the file type from “Text (Tab delimited) (*.txt)” to “Excel Workbook (*.xlsx)”, and save it to your EGM101 folder on your OneDrive:

Warning

Be sure to double-check that you are saving this to your OneDrive folder, not the local disk. If you save the file to the local disk, it will not be backed up, and you won’t be able to access it unless you are sitting at this exact same computer. And tven then, there’s no guarantee that the computer won’t have been wiped clean in the meantime.

Once you’ve saved the file, you should see that the warning about possible data loss at the top of the view has gone away:

formatting text

Now that we’ve successfully imported the data, we want to edit the sheet to make it easier to read. We can start with the column headers - let’s rename these to be something that’s a bit easier to understand:

Here, I’ve changed yyyy to Year, mm to Month, and af to Air Frost.

Like in Word, we can also change the font to highlight text - go ahead and make the first row of text Bold by highlighting the cells and changing the text to bold (either using Ctrl + B on the keyboard, or by clicking on the “B” under the font name on the Home tab).

Change the second row of text (the units) to italics in the same way: first highlight the cells, then press Ctrl + I on the keyboard, or click on the “I” under the font name on the Home tab.

Your spreadsheet should now look like this:

freezing the view

The next thing we can do to make the spreadsheet easier to work with is freeze the top row(s) of the spreadsheet so that as we scroll down the sheet, the top two rows are always in view. To do this, click on cell A3. Then, under the View tab, click on Freeze Panes and select Freeze Panes (the first option). This will freeze the first two rows:

You should see that a line appears between the second and third rows. Now, when you scroll, the column headers will always be visible - this way, you don’t have to scroll back up to see what data each column represents:

Note

Freeze Panes will set the “freeze line” above and to the left of the highlighted cell. So, if you also want to freeze the first column, you can click on cell B3 instead. This will freeze the first two rows, as well as the first column.

Question

Look at the values in each column of the table. What type of data do each of these variables represent?

adding/removing columns and rows

The next thing that we’ll cover is adding and removing columns and rows to the spreadsheet. You should notice that, while the total monthly rain (Rain, column F) has data starting in January 1853, the other rows (minimum/maximum Temperature, days of Air Frost, and average hours of Sun) don’t start until April 1865 (row 150).

Because we are primarily interested in the temperature records in this exercise, we can remove rows where we have no data. First, scroll back to the top of the spreadsheet. To delete an entire row, we first have to highlight the row in the table.

To do this, click the row number in row 3 (left-most part of the window):

You should see that all of row 3 is now highlighted. To delete an individual row, you can right-click on the row number and select Delete. Rather than doing this individually, though, we can select multiple rows using the Shift key.

With row 3 highlighted, scroll down in the table until you see row 149. Hold down the Shift key and click on the row number for row 149. You should see that rows 3 - 149 are now highlighted:

Right-click on the row numbers along the left-most part of the window, and select Delete. You should see that the table shifts upwards:

Click on any cell to remove the selection. The next thing we’ll do is add a column to the table, to represent the monthly mean temperature. We’ll add this column in between the maximum and minimum columns of the table.

Click on the column name for column D to highlight the column:

Next, right-click on the column name and select Insert - this will add a new column between column C and the (old) column D (now column E):

In the first row of this column, add a name (Tmean), and in the second row, add the units (degC) - you should see that the formatting you added earlier is still there in the new column:

calculating values using formulas

One of the biggest advantages to using programs like Excel is that we can use the computer to do calculations for us, rather than needing to do everything by hand. There are a number of different ways we can have Excel calculate new values for us - as a first example, we’ll see how we can use it to calculate the monthly mean air temperature according to the following formula:

\[T_{\rm mean} = \frac{T_{\rm max} + T_{\rm min}}{2}\]

that is, the monthly mean temperature is the arithmetic mean of the monthly maximum and minimum temperature.

simple formulas and referencing cells

To start, click on cell D3, representing the mean monthly temperature for April 1865. We could type in the value of this cell using the actual data values for the maximum and minimum temperatures:

\[T_{\rm mean} = \frac{14.8 + 5.5}{2} = 10.15\]

However, there are a number of drawbacks to this. For one, we would have to manually enter each value. This:

1. is time-consuming;

2. makes it significantly more difficult to change the values later on;

3. dramatically increases the chances of making an error (which would then require us to change the values later on).

Instead, we can use cell references to input the formula. Click on cell D3, and type in the following (alternatively, copy and paste using the copy button in the block below):

= (C3 + E3) / 2

Press Enter - you should see the following:

There are a few things to note here:

1. The formula begins with “=” - this is always the case in Excel, whether entering a simple formula or using a built-in function.

2. To refer to a cell, we use the column label (e.g., C), followed by the row label (e.g., 3).

3. In the spreadsheet, we see the output of the formula (10.15), but in the formula bar, we see the formula entered.

4. It’s usually a good idea to use brackets in your formula, to ensure the correct order of operations (and to make the formula more readable).

Rather than re-typing this formula in each row of column D, we can either copy + paste the formula, or by using the fill handle. To use the fill handle, make sure that you have highlighted cell D3 in the sheet.

Next, hover your cursor over the lower right-hand corner of the green outline - when your cursor changes to a “+” symbol, left-click the mouse, then drag the cursor toward the bottom of the screen. You should see the green outline extend. Keep going until you’ve highlighted all the way to the bottom of the table (row 1916 using the 2024 version of the data).

When you release the mouse button, you should see that each row of column D is now filled with a value:

To check, click on cell D1916 - you should see the following in the formula bar:

= (C1916 + E1916) / 2

Excel has changed the formula for each to cell, based on the row number - we only had to type the formula one time, and the computer did the rest of the work for us.

We’ll see more examples of filling cells in this way later on.

adding a new sheet

Warning

If your sheet is named something other than armaghdata, you should change this now to avoid pain and confusion later.

To do this, right-click on the tab in the bottom left corner of the workbook, then select Rename. Type in the name armaghdata, then press Enter.

To start, we will add a sheet to the workbook. At the bottom left of the window, click on the + icon next to the armaghdata tab. This will add a new sheet to the workbook:

Rather than the helpfully non-descriptive name Sheet1, let’s name this sheet summary to indicate that this is where we will include the table of summary statistics for our variables.

To do this, right-click on the Sheet1 tab, and select Rename. Type in the new name and press Enter:

built-in functions

Our next task will be to calculate descriptive statistics such as the mean, median, standard deviation, range, and inter-quartile range for each of our temperature variables (Tmax, Tmean, and Tmin).

To start, label columns B-D in the new sheet with the variable names, and label rows 2-9 with the different descriptive statistics that we will calculate:

In the upper left cell of this new table (B2 in the example above), insert the following formula:

= AVERAGE(armaghdata!C3:C1916)

This uses the built-in AVERAGE function to calculate the arithmetic mean of the cells used as input.

Unlike in the previous example, here we are referencing cells/values from another sheet in the same workbook using the sheet name (armaghdata). This tells Excel to take the values from cells C3 to C1916 from the armaghdata sheet, and calculate the arithmetic mean of those values.

You should also note the : in between C3 and C1916 – this is what Excel uses to denote a range of cells. This way, we don’t have to explicitly type in C3, C4, C5, and so on, up to C1916.

When you press enter, you should see the following:

As before, you should see that the cell displays the calculated value, while the formula bar displays the formula entered.

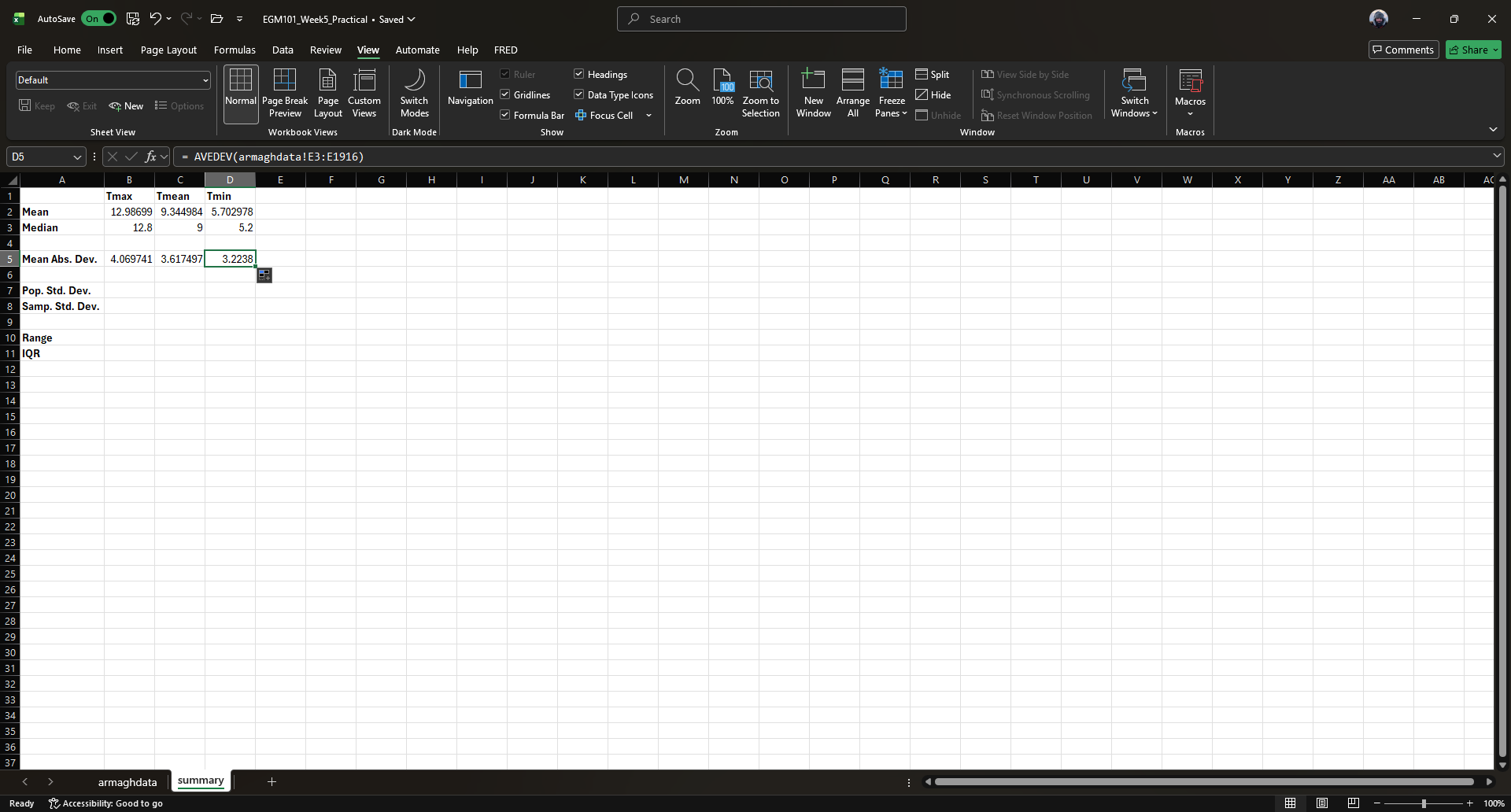

Rather than typing the formula again to calculate the mean of Tmean and Tmin, we can instead use flash fill like we did to fill out the Tmean column. To do this, click on the lower right corner of the green outline in cell B2, then drag the cursor over to cell D2:

Next, we need to fill out the rest of the table. First, use the MEDIAN function to calculate the median value of Tmax by inserting the following formula into cell B3:

= MEDIAN(armaghdata!C3:C1916)

Next, use flash fill to copy this formula to Tmean and Tmin, as you did above for the arithmetic mean.

For the standard deviation, Excel has two functions: STDEV.P and STDEV.S, for the population and sample standard deviation, respectively.

In cell B5, enter the following formula to calculate the population standard deviation:

= STDEV.P(armaghdata!C3:C1916)

And in cell B6, enter the following to calculate the sample standard deviation:

= STDEV.S(armaghdata!C3:C1916)

Again, use flash fill to fill out each row as you go along.

Excel doesn’t have dedicated functions for the range and inter-quartile range, but we can still calculate them using functions that Excel does have. Remember that the range is just the difference between the maximum and minimum values of a variable:

\[{\rm RANGE} = {\rm MAX} - {\rm MIN}\]

We use the same equation here, using the MAX and MIN functions:

= MAX(armaghdata!C3:C1916) - MIN(armaghdata!C3:C1916)

Again, use flash fill to fill out this row.

Finally, remember that the inter-quartile range is the difference between the third quartile, \(Q_3\), and the first quartile, \(Q_1\):

\[{\rm IQR} = Q_3 - Q_1\]

Excel has two functions to calculate quartiles: QUARTILE.INC, for calculating the quartile inclusive of the endpoints, and QUARTILE.EXC, for calculating the quartile exclusive of the endpoints. We’ll use QUARTILE.INC here.

Enter the following formula into cell B9:

= QUARTILE.INC(armaghdata!C3:C1916, 3) - QUARTILE.INC(armaghdata!C3:C1916, 1)

Note that QUARTILE.INC takes two arguments:

• the first is the range of values to calculate the quartile over

• the second is which quartile to calculate.

So, QUARTILE.INC(armaghdata!C3:C1916, 3) calculates \(Q_3\) of the values in cells C3 through C1916 of armaghdata, while QUARTILE.INC(armaghdata!C3:C1916, 1) calculates \(Q_1\).

Once again, use flash fill to fill out the table. It should now look something like this:

formatting cells

The final step we’ll do in this part of the practical is format the cells, so that they show an appropriate number of significant figures. In the example above, you can see that the mean value is shown with 5 decimal places, despite the fact that the original data only has a single decimal place.

Highlight all of the cells with numbers in this sheet, right-click, and select Format Cells to bring up the following window:

Make sure that the Number category is selected, then change the number of decimal places to 2. Click OK to close the window. You should see that the cells in the table are now formatted to only show the first two decimal places:

Here, you should notice something about the standard deviations: to two decimal places, the population and sample standard deviations are the same.

Remember that the difference between the population and sample standard deviation is that the denominator of the population standard deviation is \(n\), while for the sample standard deviation it is \(n-1\).

For low values of \(n\), this can make a big difference; as \(n\) gets very large, though, the difference is far less important. Here, where \(n\approx 2000\), the difference only shows up in the third decimal place.

Question

• Which temperature variable (Tmax, Tmean, or Tmin) has the largest range? What does this tell you about extreme values?

• Look at the standard deviation values for each temperature variable. Which variable has more variation? How does this compare to what you see for the range and IQR?

monthly averages

conditional formulas

Next up, we will perform slightly more complicated calculations - specifically, we will calculate monthly- and annually-averaged values of our temperature variables, starting with monthly averages.

Once again, add click on the + icon in the bottom left of the window to add a new sheet to the workbook, and rename it monthly.

Next, start adding row and column headers to this table. In the example below, I’ve grouped each parameter into a set of three columns, with spaces in between to help make it more readable:

Once you’ve set up the column headers as shown below, type the names of months in cells B3 - B14, then enter a “1” in cell A3, and a “2” in cell A4:

Rather than typing in each number individually, we can again use flash fill to automatically fill cells based on some pattern.

Highlight cells A3 and A4, then click on the green square in the lower right corner of the highlighted outline. While holding down the mouse button, drag the outline so that it includes all of cells A3-A14. Excel will recognize the pattern from the first two cells (1, 2, …) and fill the remaining cells by continuing the pattern:

Now, we’re ready to start inputting formulas into the table. In cell C3, enter the following formula:

= AVERAGEIF(armaghdata!$B$3:$B$1916, $A3, armaghdata!C$3:C$1916)

This formula uses the AVERAGEIF function to average cells in some range, based on some criteria. Here, we’re telling the function to average all of the values in cells C3:C1916 of the armaghdata sheet, but only where the value in cells B3:B1916 of the armaghdata sheet is equal to the value in cell A3 - in other words, we’re only taking the average of the temperatures from rows where the Month is equal to 1.

The second thing to notice is the use of the $ in the formula above. Earlier, when we used this formula:

= (C3 + E3) / 2

And used flash fill to copy the formula to the other rows in column D, the row number changed - that is, the formula in row 1916 was:

= (C1916 + E1916) / 2

This is because Excel treats C3 (or E3, or C1916) as a relative reference. When we typed this formula into cell D3, Excel interpreted C3 as “the cell in the same row, one column to the left”, and E3 as “the cell in the same row, one column to the right.” When you copy + paste a formula with relative references into another cell, the references change.

The $ tells Excel not to do this - it should instead keep the column or row constant, depending on where the $ is placed.

With only one $, we say this is a mixed reference - if it’s before the column ($A3), then Excel will hold the column constant and adjust the row. If it’s before the row (C$3:C$1916), Excel will hold the row constant, and adjust the column.

If we have two $ in the reference (e.g., $B$3), Excel won’t adjust the column or row at all - this is an absolute reference.

To see how changing the reference type works in practice, use flash fill to copy the formula to the other rows of column C (C3:C14) - you should see that the second reference changes from A3 in row 3, to A4 in row 4, and so on:

The other references don’t change, because the rows are held fixed. Now, with the entire column selected, use flash fill to fill out the other two columns in this part of the table. You should see that the column in the third reference changes from column C to column E, depending on which column of this sheet we’re looking at.

We have now calculated the monthly averages for each of our temperature variables. The last thing to do before moving on is to change the formatting so that only 2 decimal places are displayed. You can do this following the same procedure that we used earlier (right-click, Format Cells).

more conditional formulas

standard deviation

Next, we want to calculate the standard deviation of temperatures for each month. Unfortunately, there is no STDEV.IF function like there is for AVERAGE. Instead, we have to use IF along with STDEV.S.

In cell G3, enter the following formula:

= STDEV.S(IF(armaghdata!$B$3:$B$1916 = $A3, armaghdata!C$3:C$1916))

Here, we have nested the IF function inside of the STDEV.S function, meaning that STDEV.S will perform a calculation on whatever the output of the IF function is.

The first argument of IF is the condition - if the condition is met for a particular row, then IF returns the corresponding value from the range in the second argument. Here, the condition is:

armaghdata!$B$3:$B$1916 = $A3

Excel will compare the values in column B of the armaghdata sheet to the value in cell A3 of the current sheet (1). Wherever those values are equal to 1, IF passes the value in column C of the same row to STDEV.S.

Because we have fixed the column, but not the row, when you use flash fill to fill in the rest of the cells in the standard deviation part of the table, the formula should adjust based on the row, just as it did for AVERAGEIF.

Go ahead and do this now, then be sure to format the cells to show only the first two decimal places.

median

To calculate the monthly median values, we will use the MEDIAN function nested with the IF function, exactly as we did for the standard deviation. Enter the following formula into cell K3:

= MEDIAN(IF(armaghdata!$B$3:$B$1916 = $A3, armaghdata!C$3:C$1916))

Once you have entered the formula into cell K3, use flash fill to fill the remaining values in this part of the table, then format the cells to show only the first two decimal places.

inter-quartile range

To calculate the monthly inter-quartile range values, we will use the QUARTILE.INC function nested with the IF function. This formula is slightly more complicated, since it requires two nested functions.

Enter the following formula into cell O3 (remembering that you can copy and paste):

= QUARTILE.INC(IF(armaghdata!$B$3:$B$1916 = $A3, armaghdata!C$3:C$1916), 3) - QUARTILE.INC(IF(armaghdata!$B$3:$B$1916 = $A3, armaghdata!C$3:C$1916), 1)

Once you have entered the formula into cell O3, use flash fill to fill the remaining values in this part of the table, then format the cells to show only the first two decimal places.

Once you have finished filling in the various formulas and formatting the cells, your monthly sheet should look something like this:

Question

• Compare the mean and median temperature values for each month. What does this tell you about the distribution of temperature values within those months?

• What month(s) have the most variation in temperature (Tmax, Tmean, and Tmin), as measured by the standard deviation? How does this compare to the differences between the mean and median temperature values for those months?

annual averages

Next, we’ll calculate annual averages for our temperature variables. The procedure for calculating annual values works much the same as for the monthly data. First, we create a new sheet, then add data and formulas to the new sheet.

To start, add a new sheet by clicking the “+” next to the monthly tab, then re-name the new sheet yearly.

Next, add the column headers to the new sheet. For this practical, we’re only going to calculate annual means and medians, though you can use the same procedure we used in the previous section to calculate standard deviations, inter-quartile ranges, and so on.

First, though, we have to input the years that we want to average over into the table. In cell A3, type “1866”, and in cell A4, type “1867”, then use flash fill to fill the remaining years up until 2023.

Note

For now, we’re only going to include years where we have 12 months of data - because the 1865 data doesn’t start until April, and the 2024 data ends in September, we’ll exclude those years for this part of the analysis.

In cell B3, now, enter the following formula:

= AVERAGEIF(armaghdata!$A$3:$A$1916, $A3, armaghdata!C$3:C$1916)

You’ll note that this is almost the exact same formula as we used for the monthly averages, with the change that we’re averaging based on the year (column A in the armaghdata sheet) instead of the month (column B).

Once you have entered the formula, use flash fill to fill the remaining cells in this part of the table (columns B to D, rows 3 to 160). Next, be sure to format the cells to only show the first two decimal places, as before.

We can now do the same thing for the median values - in cell F3, enter the following formula:

= MEDIAN(IF(armaghdata!$A$3:$A$1916 = $A3, armaghdata!C$3:C$1916))

Next, use flash fill to fill the remaining part of this table (columns F to H, rows 3 to 160), then format the cells to only show the first two decimal places. Your table should look something like this:

Note

If it’s been a while since you’ve saved your workbook, you should do so now (File > Save, or CTRL + S on the keyboard.

creating charts

In addition to performing calculations, we can also create charts and figures using Excel. In this part of the practical, we will see how we can create histograms, bar charts, and line charts.

histograms

We will start by looking at the distribution of monthly-averaged values in the form of a histogram. On the armaghdata sheet, highlight column D by clicking on the column label.

To add a chart, first click on the Insert tab:

In the Charts section (red box), click on Insert statistic chart (white box), and select Histogram from the menu that pops up. You should see that you have a histogram added to the table:

First, we want to re-size the chart to make it a bit bigger - to do this, click on the chart, then click and drag on any of the corners to expand it:

Before we are finished with our histogram, there are a few things that we need to do. First, remember that a chart should have a title or a caption that explains the chart. Click on “Chart Title”, and change the title from “Chart Title” to “Distribution of monthly mean temperatures, 1865-2024”.

Next, we need to add labels for the axes. When you click on the chart, you should notice icons appear along the right edge. Click on the “+” button to open a menu for adding chart elements:

To add axis labels, click the checkbox next to Axis titles - you should see two labels appear along the vertical and horizontal axes.

Change these to be “Frequency” or “Count” on the vertical axis, and “Temperature (°C)” on the horizontal axis:

Finally, we can increase the font size on the labels, to make them easier to read. To do this, highlight the text and increase the font size using the small window that pops up. Alternatively, you can select the text box, then change the font size using the Home menu.

Increase the axis label font size to 14, the chart title font size to 20, and the vertical axis tick labels to size 12. Your chart should now look something like this:

Question

• What kind of frequency distribution does Tmax have? Why would you expect this to be the case?

• What is/are the modal value(s) of Tmax?

If you like, you can also change the color and style of the bars. If not, go ahead and move on to the next section.

Note

For more flexibility with histograms, you can use the FREQUENCY function to create a table of frequencies, then display the frequencies as a bar chart. We will not cover this here, but if you are interested in going a bit further, there are some excellent tutorials online such as this one or this one.

bar charts

The steps for creating a bar chart are more or less the same as for creating a histogram, at least at the start. First, we’ll select the data that we want to plot. In the monthly data tab, highlight cells D3 to D14 by clicking on cell D3, and dragging the mouse cursor down to cell D14:

Under the Insert tab, in the Charts section (red box), click on Insert Column or Bar Chart (white box), and select Clustered Column. You should see the following inserted into the table:

Go ahead and move the chart so that it’s not covering data, and re-size it like you did with the histogram. The first thing we’ll need to do is change the horizontal axis labels to use the month names, instead of numbers. To do this, first click on the Chart filters button along the right-hand side of the chart:

At the bottom of this menu, click Select Data… to bring up the following window:

We’ll keep the data as-is, but click on Edit under Horizontal (Category) Axis Labels. Now, select cells B3 to B14 to use the month names as axis labels:

You should see that the labels in the chart have changed to “January, February, …” from “1, 2, …”. Click OK in both of the windows that have been opened to return to the Workbook. The next thing we want to add are error bars, to show the variation of temperatures within each month.

To do this, click on the Chart Elements button again, and select Error bars:

This turns on the error bars, but we’re interested in showing the standard deviation of the monthly observations, rather than the default. From the Chart Elements menu, click on the arrow next to Error bars, and select More options…. This should bring up the Format Error Bars panel on the right-hand side of the screen:

Click on Error bar options (red box). At the bottom of this panel, under Error Amount, click the button next to Custom, then click on Specify Value:

Here, you can select the data ranges to use, or use a set value (currently set to ±1).

Under Positive Error Value, select cells H3 to H14 (representing the monthly standard deviation of Tmean). Do the same for the Negative Error Value:

You can also change the formatting of the error bars to make them thicker and more visible (Width under Fill & Line):

Next, we’ll see how we can format the tick labels on the axis. Click on the vertical tick labels. Then, under the Format Axis panel on the right-hand side of the window, click on Axis Options, followed by Number, then change the number of decimal places to “0”:

Note that under Axis Options, you can also change the axis bounds, as well as the spacing between the ticks. For now, the default values are fine.

To finish up the chart, change the chart title to “Average monthly temperature, 1865-2023”, add axis labels, and increase the font sizes like we did for the histogram:

Question

• What month has the highest average temperature? What about the lowest?

• What month(s) have the smallest spread in temperature? What might this tell you about the weather in those months?

Note

Alternatively, you could plot the monthly-averaged temperatures as a line chart:

line charts

For the final example of creating a chart using Excel, we’ll create a line chart using the median annual temperature. Click on the yearly tab, then select all of the data in columns F through H and rows 2 through 160:

Under the Insert tab, in the Charts section (red box above), click on Insert Line or Area Chart (white box above), and select Line with Markers.

This will insert a line chart into the workbook:

As before, you can move and re-size the chart object. At the moment, the x-axis data is just the row number, starting counting from 1. We would like to plot the median temperature vs. the year, so we need to add the correct labels to the chart.

As you did for the bar chart, click on the Chart Filters button along the right side of the chart, then click on Select Data to bring up the Select Data Source dialogue.

Under Horizontal (Category) Axis Labels, click on Edit to select the cells containing the axis labels, then select cells A3 to A160 (alternatively, type the range into the formula bar in the Axis Labels window):

Click OK - you should see that the labels have changed from 1, 7, ..., 151 to 1866, 1869, ..., 2019. This is quite crowded, and we can change the labels so that only every 10th value is shown.

To do this, click on the horizontal axis labels to highlight them. On the Format Axis panel, click on Axis Options.

Under Tick Marks, change the Interval between marks to be 10, and the Major type to be Cross - this places a tick on the horizontal axis every 10 data points, which can help with reading the graph.

Under Labels, select Specify interval unit, and type 10 in the box - you should see that the labels change from 1866, 1869, ..., 2019 to 1866, 1876, ..., 2016:

To finish up the graph, add a chart title and axis titles as you have before, and remove the decimal points from the vertical axis labels. Finally, increase the font size of each of the chart elements.

Your final chart should look something like this:

At this point, you have finished the exercises in this practical. Have a look back at the questions in the text, and see how many of them you can answer.

Hint

Keep in mind that some of the questions included in the practical will most likely be part of the assessment for this part of the module, so it’s probably a good idea to write down your thoughts/answers now. That way, you have an easier time answering the questions on the assessment.

If you would like extra practice with Excel, have a look at the “next steps” section below for some suggestions on additional exercises you could try.

next steps

• Calculate descriptive statistics, monthly descriptive statistics, and annual total values for Rain. To calculate the annual total, you will use the SUM function instead of AVERAGE.

Question

• based on your results, what month(s) tend to be the rainiest in Armagh?

• looking at the annual plot, has the total rainfall been consistent over time? can you pick out years where the rainfall has been much heavier (or lower) than others? How does this compare with the temperature? Do warmer years tend to have more rainfall, or less?

• Instead of looking at the annually-averaged values of temperature, we can instead look at the difference between each annually-averaged value and a long-term average - something called an anomaly. To do this, you subtract the long-term average value from each value, then plot the result. Can you create a graph that looks like the one below?

Question

Looking at the graph below, what do you notice about the temperature anomaly over time?
